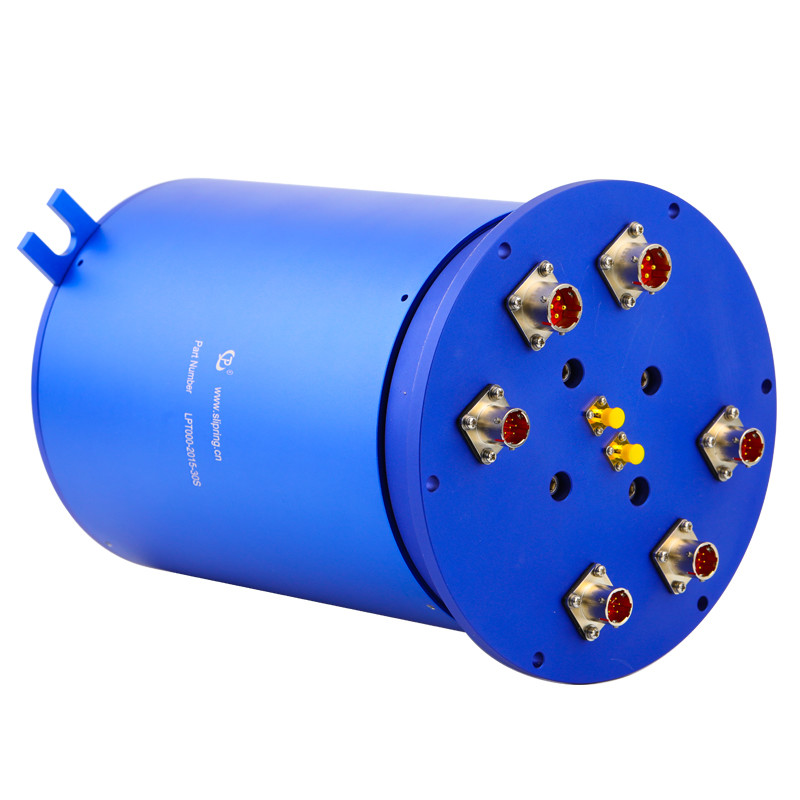

High Frequency Rotating Electrical Connector Slip Ring With Flying Lead

  • High Frequency Rotating Electrical Connector Slip Ring With Flying Lead
  • High Frequency Rotating Electrical Connector Slip Ring With Flying Lead
  • High Frequency Rotating Electrical Connector Slip Ring With Flying Lead
Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPT000-2015-30S
Minimum Order Quantity 1
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT / CC / Paypal
Supply Ability 500 pieces /Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Circuits 20 Operating Speed 0-10rpm
Working Humidity ≤95%RH Voltage Ratin380VAC/DCg 48/24/12 VAC/VDC
Current Rating 20*15A+30S+2*HF Dielectric Strength ≥500VAC@50Hz(P) ≥300V@50Hz(S)
IP(Max) IP64
Highlight

hollow shaft slip ring

,

rotating slip ring
Product Description

Integrated Slip Rings of Electricity and High Frequency with Flying Lead and IP64 High Protection Level

Description
A high-precision unit that integrates electricity and high frequency; Special construction and manufacturing technique permit its independence and anti-interference between the two. With a reliable transmission, it takes the leading position with originality in its field.

Be able to transmit power, common signal, CAN signal, analog signal, synchronizing signal and high definition video signal simultaneously.


Specifications

Specification
Circuits 20 circuits
Operating Speed 0-10rpm
Working Temperature -40°C~+70°C
Working Humidity ≤95%RH
Electrical
Voltage Rating 48/24/12 VAC/VDC
Current Rating 20*15A+30S+2*HF
Dielectric Strength

≥500VAC@50Hz(P)

≥300V@50Hz(S)
Insulation Resistance

500MΩ@500VDC(P)

100MΩ@300VDC(S)
Mechanical
Contact Material Precious metal
Housing Material Aluminum Alloy
Protection IP64


Dimensions

High Frequency Rotating Electrical Connector Slip Ring With Flying Lead 0


Product Application
High Frequency Rotating Electrical Connector Slip Ring With Flying Lead 1
