4 Circuits Separate Flat Slip Ring with Precious Metal Contact
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| ID | 13 Mm | Number Of Circuits | 4 |
|---|---|---|---|
| Current Rating | 2A Per Circuit | Design | Separate PCB |
| Characteristics | PCB | ||
| Highlight | pan cake slip ring,high current slip ring |
||
Product Description

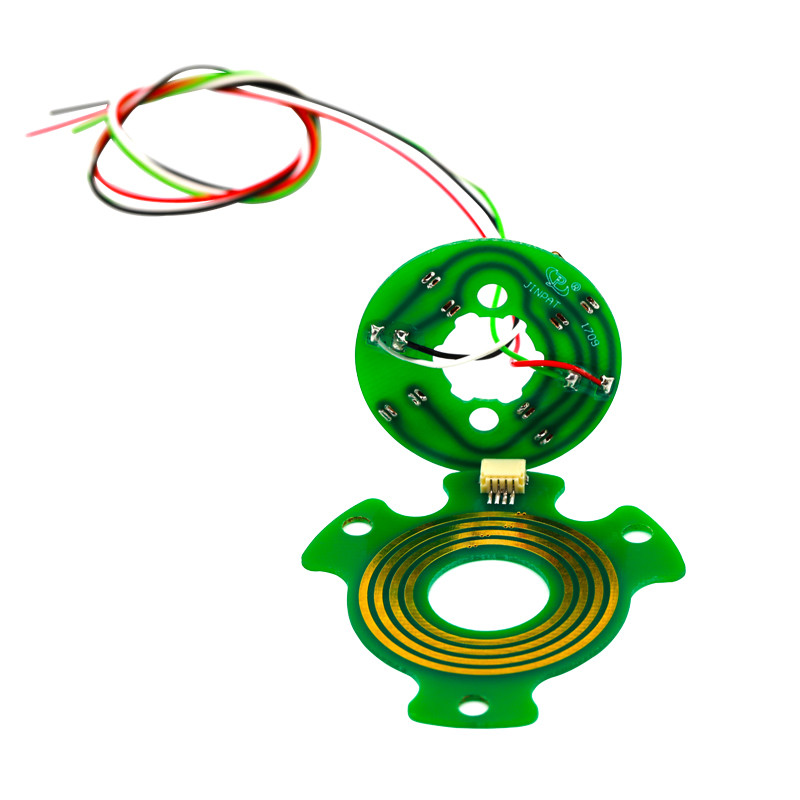

4 Circuits Separate Flat Slip Ring with Precious Metal Contact for Robots
Description
Pancake slip ring is designed for the equipment where there exists limits in its installation space. Also, it is perfectly suitable for the installation space where exists limits in its height. The LPKS013-0402 flat slip ring transmit 2A current in 4 circuits. As to its installation, the PCB board is fixed on the flange provided by customers.
Specifications
| Electronic & Electric | Mechanical | ||
| Circuits |
4circuits * 2A
|
Working Speed | 0~60rpm |
| Inner Diameter | Φ13mm | ||
| Working Voltage | 20V | Contact | Nobel Metal |
| Dielectric Strength |
≥300V@50Hz
|
Housing | FR-4 |
| Insulation | 10MΩ@300VDC | Wire Length |
Stator Wire:250mm Rotor Wire: / |
| Environment | Remarks | ||
| Temperature | +15°C~+45°C |
Installation Method
|
PCB board is fixed on the customer's flange
|
| Humidity | ≤60%R | ||
