Through Hole Slip Ring 24 Circuit 15a 240VAC
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Working Temperature | -20℃~ +60℃ | Circuits | 24 |
|---|---|---|---|
| Operating Speed | 0-300rpm | ||
| Highlight | through bore electrical slip ring,rotating slip ring |
||
Product Description
LPT slip rings are through-hole slip rings (the center hole can pass through the drive shaft, gas-liquid passage; it can also integrate high frequency, fiber, encoder, waveguide, gas and liquid and other joints). Using advanced fiber brush, reliable contact is guaranteed with very low friction. The center hole can be selected from 0 to 1000mm, the current can be selected from mA to 5000 amps, and the voltage can be up to 10000 volts, which can fully meet your different transmission schemes.
| Specification | |
| Circuits | 24 circuits |
| Operating Speed | 0-300rpm |
| Working Temperature | -20℃~ +60℃ |
| Working Humidity | 60%RH or higher |
| Voltage Rating | 240VAC/DC |
| Current Rating | 15A per circuit |
| Dielectric Strength | ≥1000V@50Hz between each circuit |
| Insulation Resistance | 500MΩ@ 500VDC |
| Electrical Noise | 1mΩ Min |
| Contact Material | Precious metal |
| Protection | IP54 or higher |
| Via diameter | 25.4mm |
Product outline drawing

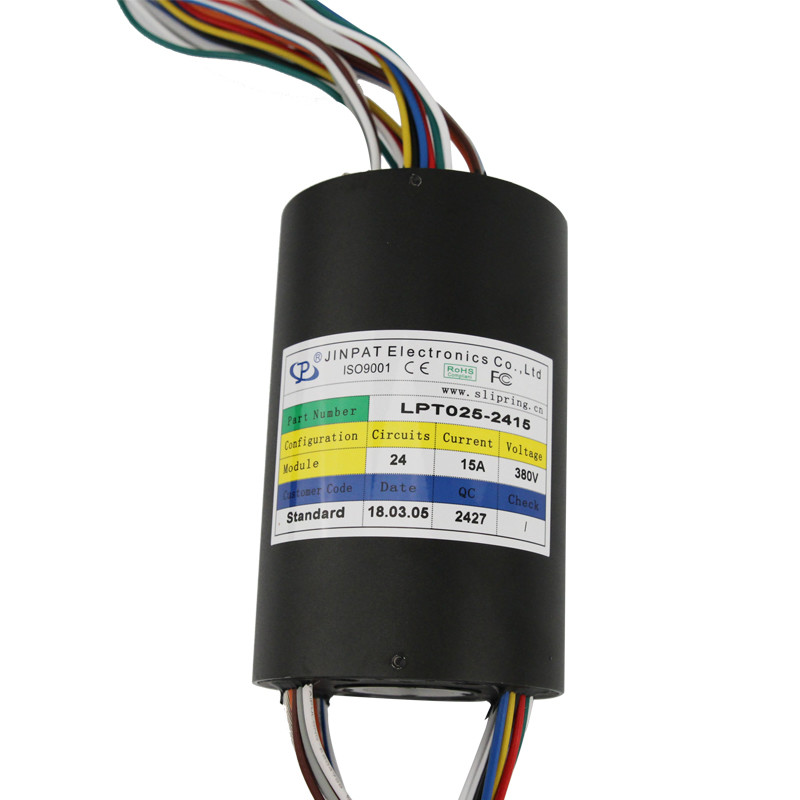

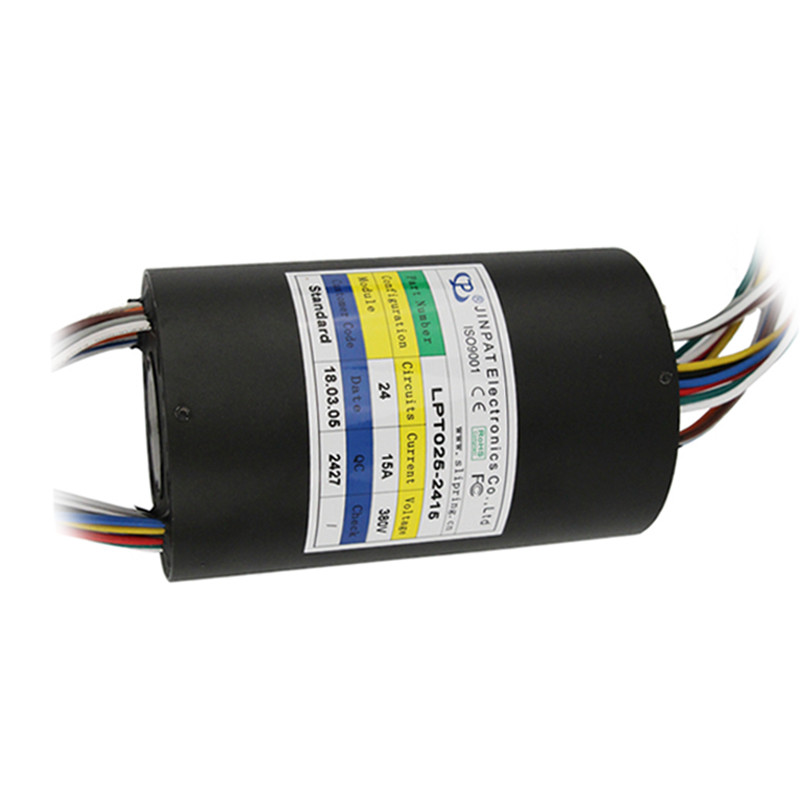

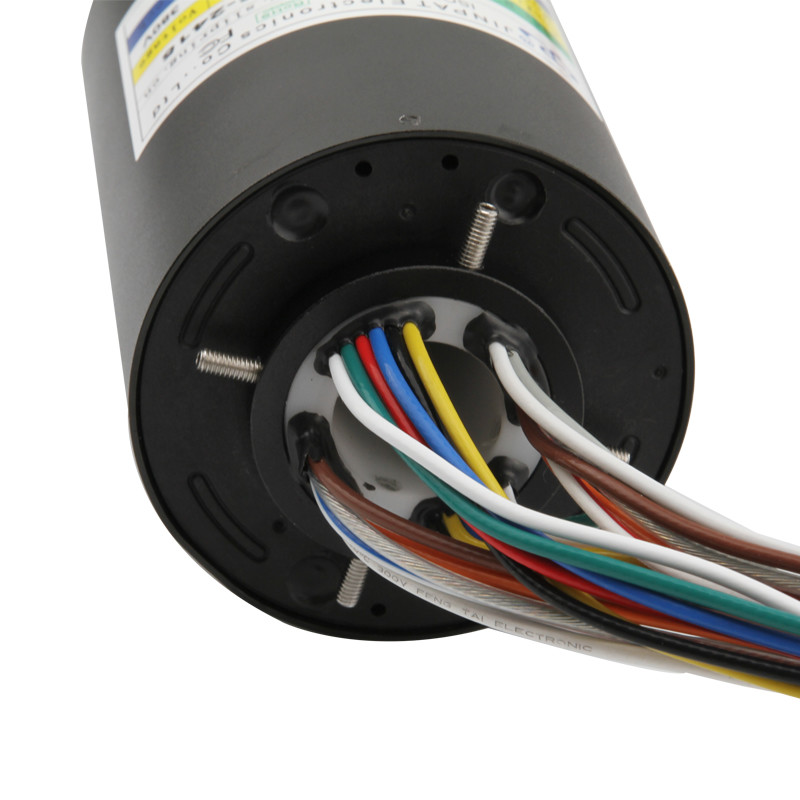

Product Image
