Through Hole Slip Ring 12 Circuit 10A Working Humidity 60% RH

Place of Origin	China
Brand Name	JINPAT
Certification	ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number	LPT012-1210
Minimum Order Quantity	1PCS
Price	Negotiable
Packaging Details	Standard/On Request
Delivery Time	2 weeks ARO
Payment Terms	TT/CC/Paypal
Supply Ability	100K units/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Electrical Noise

≤70mΩ

Working Temperature

-20~+60℃

Working Speed

0~300 RPM

Highlight

hollow shaft slip ring

through bore electrical slip ring

Product Description

through-bor slip ring 12 circuit 10A working humidity 60% RH below the hole diameter 12.7mm ,bore slip ring

The LPT012-1210 through bore slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.

Specification

Circuits	12
Current Rating	10A
Voltage	240VAC
Dielectric Strength	≥1000V@50Hz between circuits
Insulation	500MΩ@500VDC
Electrical Noise	≤70mΩ
Hole Diameter	12.7mm
Working Speed	0~300 RPM
Contact	Precious metal
Housing	Aluminum alloy
Working Temperature	-20~+60℃
Humidity	≤60%RH
Protection Grade	IP54

Outline Drawing

Through Hole Slip Ring 12 Circuit 10A Working Humidity 60% RH 0

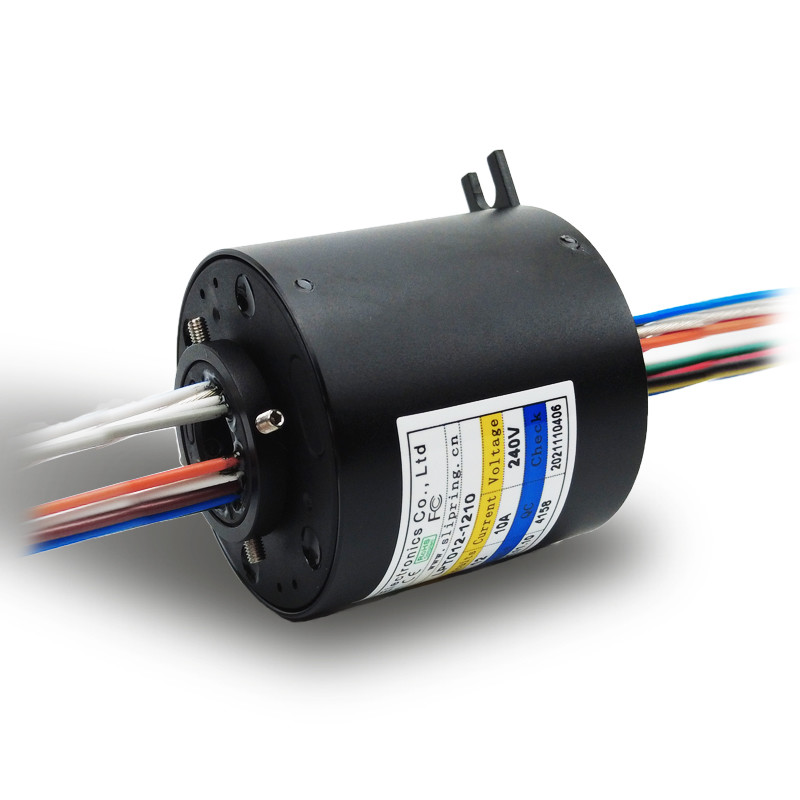

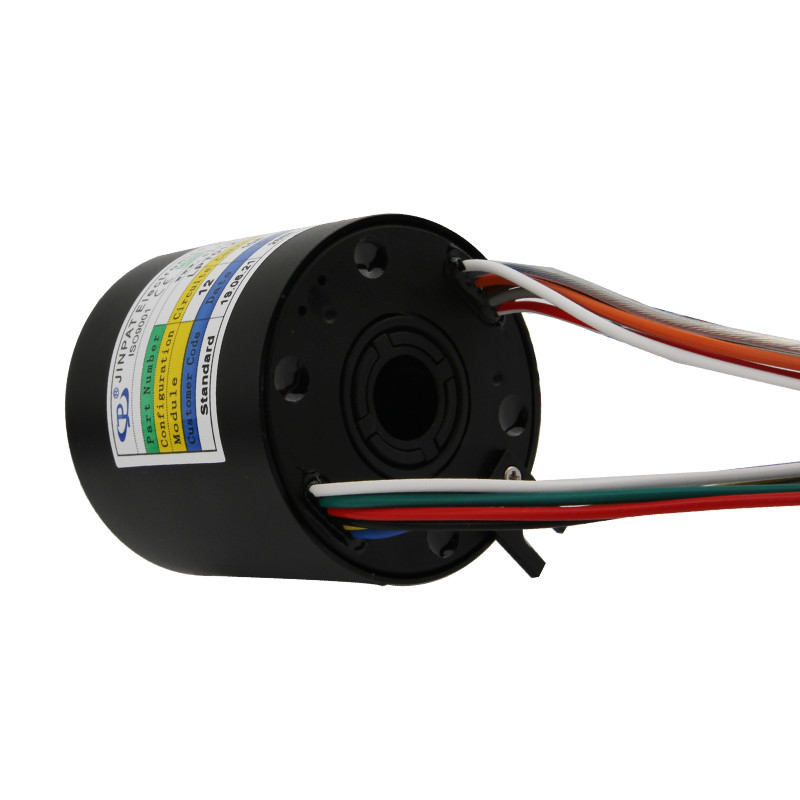

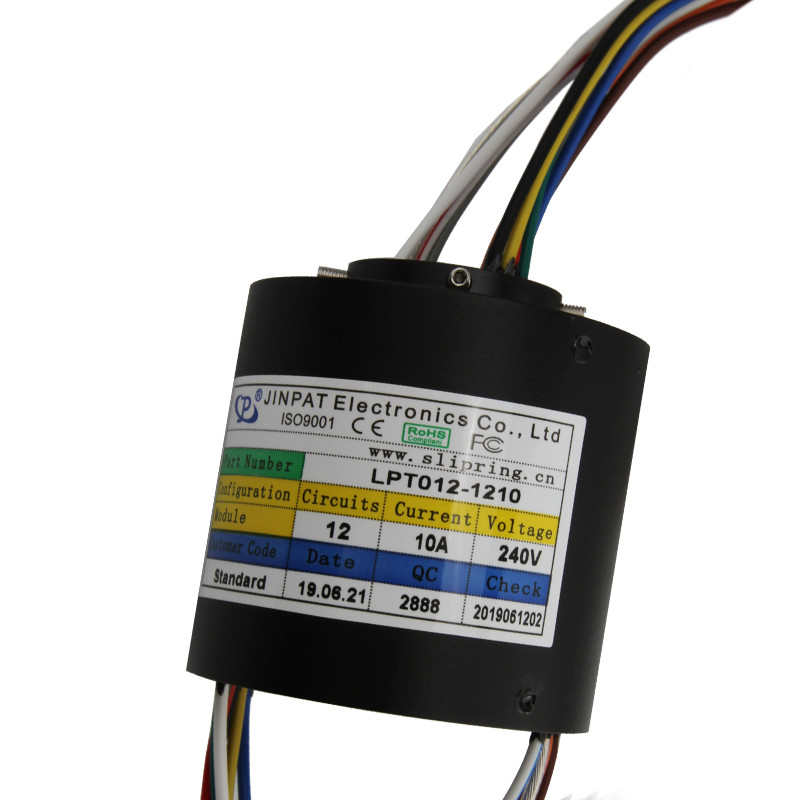

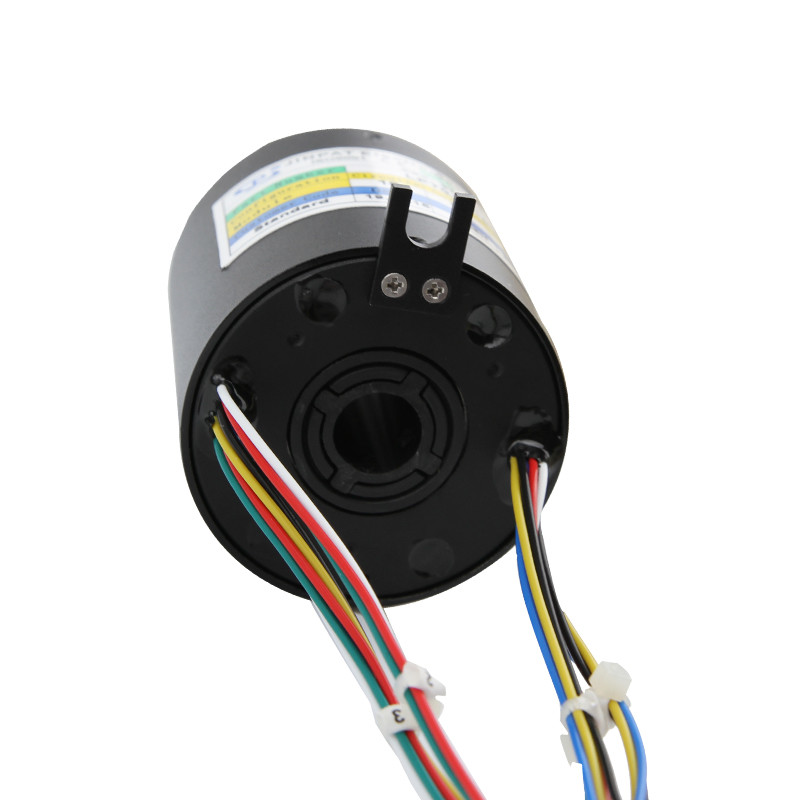

Product Display

Through Hole Slip Ring 12 Circuit 10A Working Humidity 60% RH 1

Through Hole Slip Ring 12 Circuit 10A Working Humidity 60% RH 2
