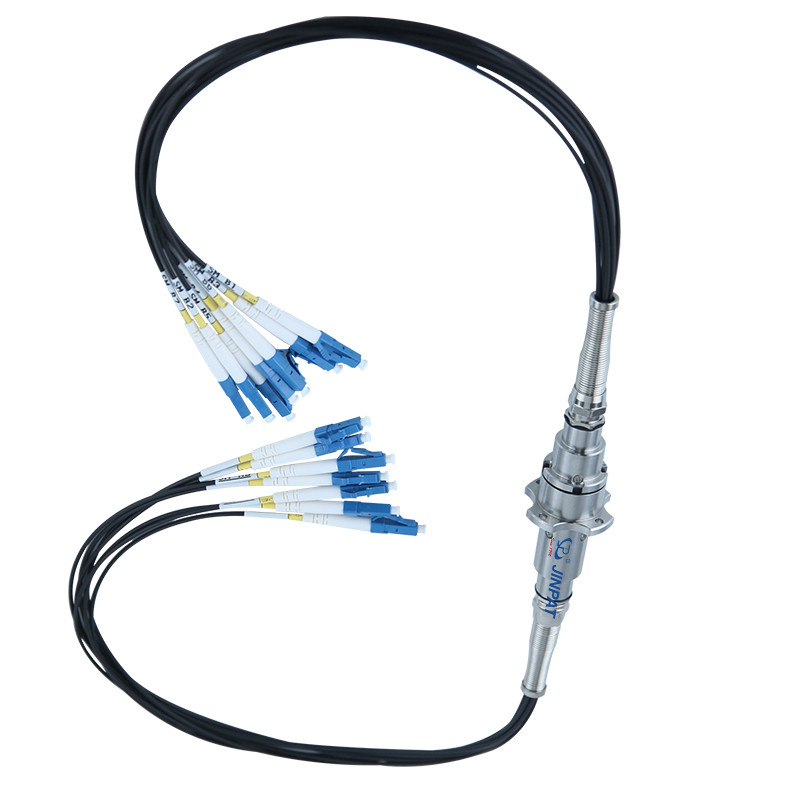

Mini 5 Channel Photoelectric Hybrid Slip Ring IP65 IP67 300rpm

  • Mini 5 Channel Photoelectric Hybrid Slip Ring IP65 IP67 300rpm
Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPFO-05N-A
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms T/T, C/C, Paypal
Supply Ability 500 pieces / week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Channel Number 5 Lead Size Φ26/Φ38*119
Wavelength Range 850-1550 Insertion Losse ＜4dB
Insertion Loss Ripple ＜2dB Optional Single Can Be Customized,housing Material And Driving Connector Are Optional
Highlight

fibre optic slip ring

,

optical rotary joint

,

Photoelectric Hybrid Slip Ring
Product Description

LPFO optical slip rings are also known as fiber optic rotary joints, optical rotatory connector. The optical slip ring adopts optical fiber as media. It offers the best solution to transmit great capacity data and signals. The optical slip ring can be integrated with traditional electrical slip rings. The hybrid slip ring model is able to transmit power, signals and high speed data.



Specifications
Fiber types SM(9/125um)

MM(50/125um or 62.6/125um)

 Jacket types 2.0mm/ armor
Channel number 5 Connector types FC/SC/ST/LC(PC or APC)
Wavelength range

SM:1310-1550nm

MM:850/1300nm

 Estimated life cycle ＞100 million revolutions
Insertion loss ＜4dB Vibration MIL-STD-167-1A
Insertion loss ripple ＜2dB Mechanical shock MIL-STD-810G
Return loss

SM:≥40dB

MM:≥25dB

 IP rating IP65 or IP67
Crosstalk ≥50dB Max Optical power 23dBm
Storage temperature -55~+85℃ Working temperature

-20~+65℃(Industrial grade)

-45～+75℃ (Military grade)
Weight, approx 200g(No tail cable andconnection included) Maximum speed 300rpm
Package style Pigtails on both ends



Product Outline Diagram
