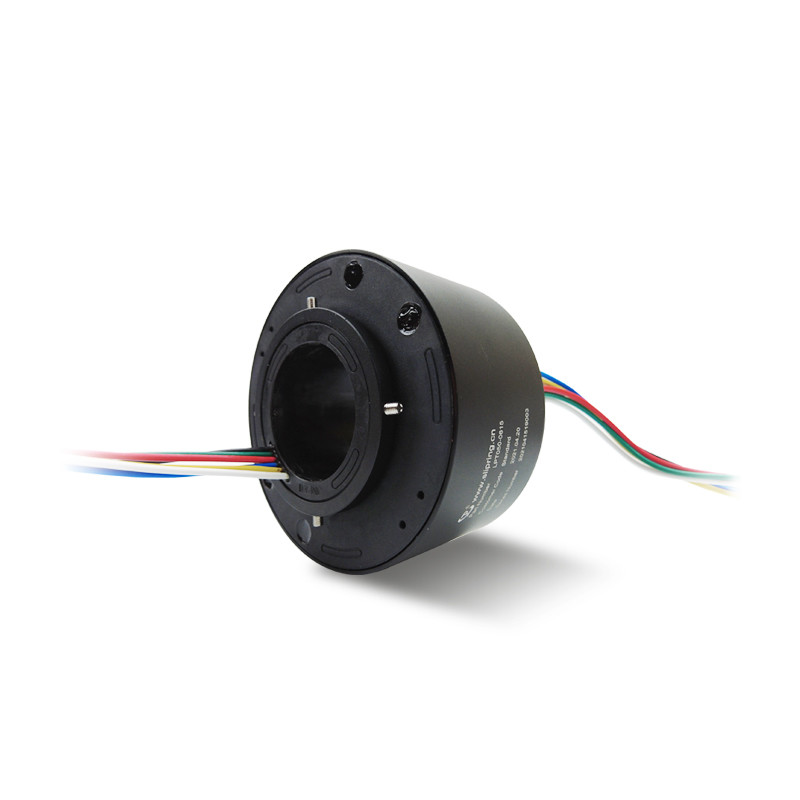

2A Through Hole Slip Ring IP44 240VAC 0~300rpm Customized Signal Slip Ring

  • 2A Through Hole Slip Ring IP44 240VAC 0~300rpm Customized Signal Slip Ring
Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPT012-3002
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 500 units/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Number Of Circuits 30 Circuit Current Rating 2A Per Circuit
Inner Size 12.7mm Operating Speed 0~300 Rpm
Voltage Rating 240VAC/DC Or Higher IP IP44
Working Humidity ≤60%RH
Highlight

Automation Equipment Through Hole Slip Ring

,

2A Through Hole Slip Ring

,

300rpm Hollow Shaft Slip Ring
Product Description

Through Hole Slip Ring,30 Circuits 2A IP44 240VAC 0~300rpm,Customized signal slip ring

LPT012 Series Through Hole Slip Rings
This unit can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. It is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint. It can improve electromechanical capability, simplify system design, eliminate possible damage while rotating. It’s the key apparatus of various precision rotary worktable, electric test instrument, manufacture and process control instrument.


The LPT012 provides an economical, readily available solution when a compact through-bore configuration is required. This unit provides a 12.7mm through-bore for routing hydraulic or pneumatic lines and a compact 55mm outside diameter for minimal space applications. The 5 amps /circuit are available in 6, 12, 18 and 24 ring configurations in 4 housing length. Similar in design to our very popular LPT012 series, this design features long life, fiber brush contact technology for ultimate performance in many challenging applications. Fiber brushes do not require lubrication and produce virtually no wear debris, for maintenance free, life time operation.

Electronic & Electruc Mechanical
Circuits Total 30CKT Working Speed 0~300rp
Detail 30X2A Inner Diameter Φ12.7mm
Rating Voltage 240VAC/ DC Contact Material Precious Metal
Dielectric Strength 500VAC@50Hz Housing Material Aluminum Alloy
Insulation Resistance ≥500MΩ@500VDC Lead Wire Length

Stator:300mm

Rotor:300mm
Environment Remarks
Working Temperature -20°C~+60° Other /
Working Humidity ≤60%RH





LPT012-0605-Outline Drawing




LPT012-0610-Outline Drawing




LPT012-1205-Outline Drawing






LPT012-1210-Outline Drawing




LPT012-1805-Outline Drawing




LPT012-1810-Outline Drawing




LPT012-2405-Outline Drawing




LPT012-2410-Outline Drawing
