80mm Through Hole Slip Ring 5A Per Wire

80 mm Hole Size Slip Ring Routing 5A Per Wire for Automatic Labeling Machine

The LPT Series so rotating joints feature all-aluminum construction and low-torque seals that are suitable for pressure or vacuum use.LPT080-0405-0701 slip ring has features of 80 mm through bore size and 11 circuits routing 6A  per ring.

The 80mm unobstructed through-bore provides routing space for hydraulics, pneumatics or for a concentric shaft mount. The LPT080 uses our fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates. In addition, fiber brushes do not require lubrication and produce virtually no wear debris. The LPT080 features field serviceable brush blocks.










Features

• 80 mm through-bore
•  Modular design - a single module can have: one 50 amps ring; two 30 amps rings; one, two or three 10 amps rings or six 5 amps signals
• Up to 20-50 amps circuits
• Speeds up to 500 rpm continuous
• Steel bearings and machined shaft and housing for harsh environments
• Collar mounting is standard; flange mounting is optional
• Various lead exits are available
• Silver plated rings are standard. Gold plated optionally.
• Continuous 360^o rotation of power or data signals
• Sealed unit

Demension:

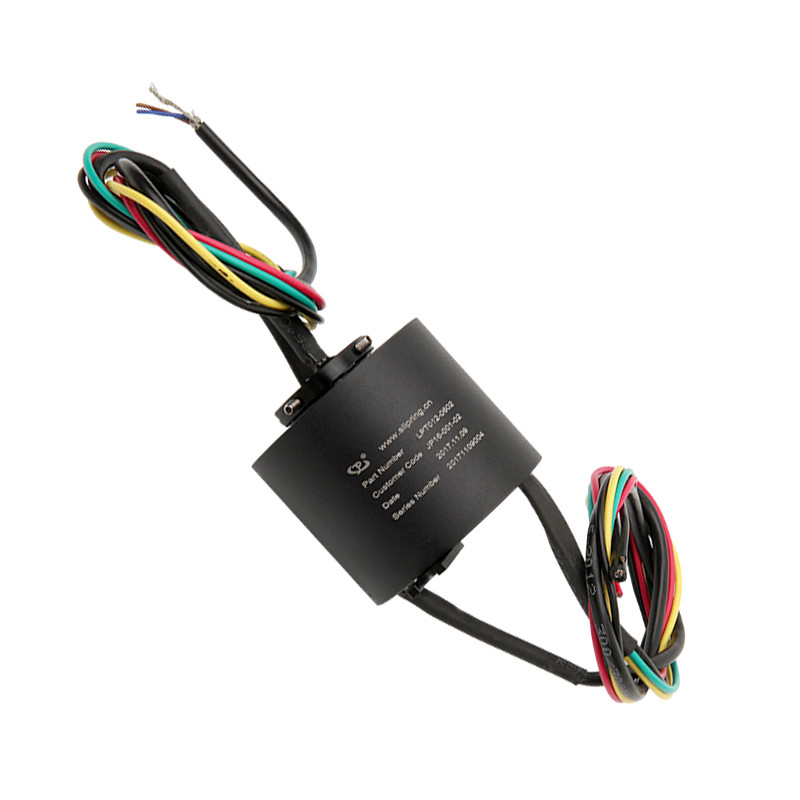

Product Display

Application Picture (Test equipment)
