Customizable Rotary Slip Ring Through Hole Design Precious Metal Contacts

  • Customizable Rotary Slip Ring Through Hole Design Precious Metal Contacts
  • Customizable Rotary Slip Ring Through Hole Design Precious Metal Contacts
Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPT big diameter sieres
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 500 pieces a week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Inner Diameter 100~800mm Current Rating 0.5mA~20A
Circuit Optional Voltage Rating 240VAC/DC
Lead Wire Size Optional
Highlight

rotary joint slip ring

,

miniature through bore slip ring
Product Description

Customizable Slip Rings with Through-hole Design with Precious Metal Contacts for Rotary Systems



Description



This unit can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary part to a rotating part.The slip ring of this type provides an efficient solution for that precise equipment which requires a limited size space and transmits current or signal between rotating platform and static platform.



Select a separate design or integrate design structure as per working environment; Choose hole size, wire outlet method, installation way and so on according to your support equipment.



This series integrates with PCB design; Low current and signal transmission adopt gold to gold contact materials, the minimum thickness could be up to 8mm; Current transmission 5-30A relies on the cooper-graphite structure imported from Europe with excellent lubrication performance; The minimum thickness could be up to 20mm with high reliability, which has been successfully used in various military fields.

Please contact us to recommend you suitable product and customization design.



Specification



Specification
Circuit Optional Dielectric Strength Between≥500V@50Hz
Working Speed ≤1m/s
Working Humidity -20℃~ +60℃ Insulation Resistance 500MΩ@ 500VDC
Working Temperature 60%RH Electrical Noise ≤75mΩ
Inner Diameter 100~800mm(optional) Mechanical
Electrical   Contact  Precious Metal
Voltage Rating 240VAC/DC Lead Wire Size Optional
Current Rating 0.5mA~20A Lead Wire Length Optional



Product Display

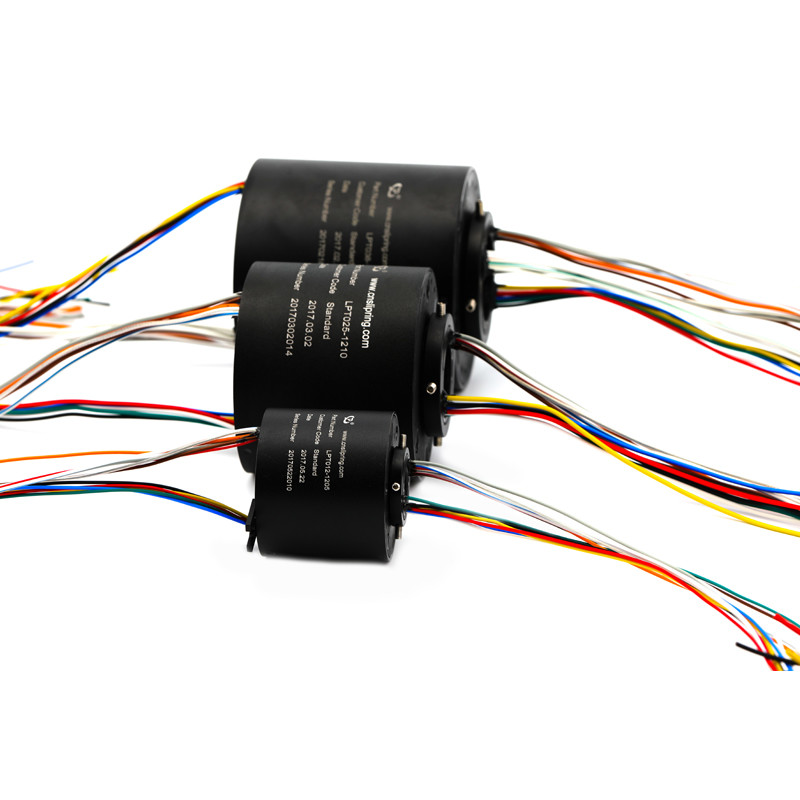

Customizable Rotary Slip Ring Through Hole Design Precious Metal Contacts 0



Notes:
The operating life of the unit depends upon temperature, rotation speed, and environment.Contact us on wire color codes We can not display more information on the website for sake of keeping trade secrets. Please send your request for more solutions to us via email

If you want to know more details about JINPAT Slip Rings, Please contact JINPAT, our sales engineers will provide you with recommendations or customizations.



Application picture

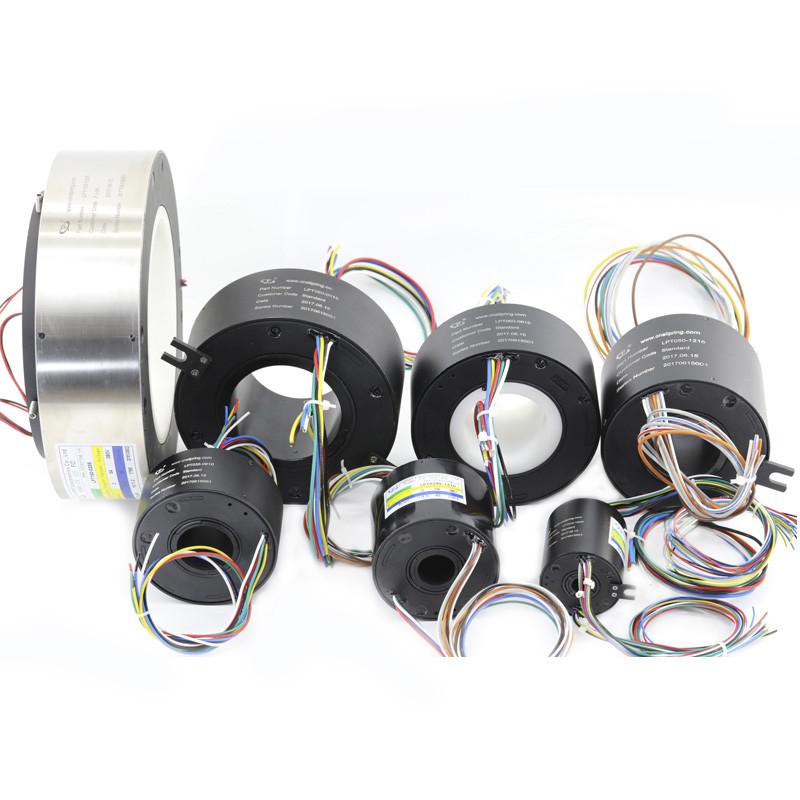

Customizable Rotary Slip Ring Through Hole Design Precious Metal Contacts 1
