4 Circuits 380 VAC Brushless Slip Ring With Silver Plated Pin Experienced Slip Ring Producer
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Circuits | 4 | Operating Speed | 0-300rpm |
|---|---|---|---|
| Working Temperature | -20℃~ +60℃ | Working Humidity | 60%RH Or Higher |
| Housing Material | Engineering Plastic | Cable Length | 37mm |
| Dielectric Strength | ≥500 VAC @50Hz, Between Each Circuit | Connecting Way | Silver Plated Pin |
| Highlight | Plated Pin Brushless Slip Ring,380 VAC Brushless Slip Ring,Silver Plated Pin Slip Ring |
||
Product Description

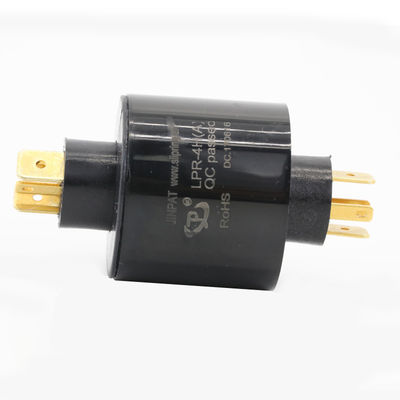

4 Circuits 380 VAC Brushless Slip Ring with Silver Plated Pin Experienced Slip Ring Producer
Description
A slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating construction. It can improve system performance by simplifying operations and eliminating damage-prone wires dangling from movable joints.
LPR-4H Series high Current slip ring provides routing space for hydraulics, pneumatics or a concentric shaft mount. The LPR-4H uses advanced fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates. In addition, fiber brushes do not require lubrication and produce virtually no wear debris.
| Specifications | |
| Operating Speed | 0-300 rpm |
| Number of Circuits | 4 |
| Voltage | 380 VAC/DC |
| Current Rating | 5 A @ 2circuits; 15 A @ 2circuits; |
| Temperature Range | -20℃ to +60℃ |
| Contact Material | Precious metal |
| Connecting Way | Silver plated pin |
| Housing Material | Engineering plastic |
| Dielectric Strength | ≥500 VAC @50Hz, between each circuit |
| Insulation Resistance | 1000 MΩ @ 500 VDC |
| Electrical Noise | 10mΩMin |
Outline Drawing
Application Picture
