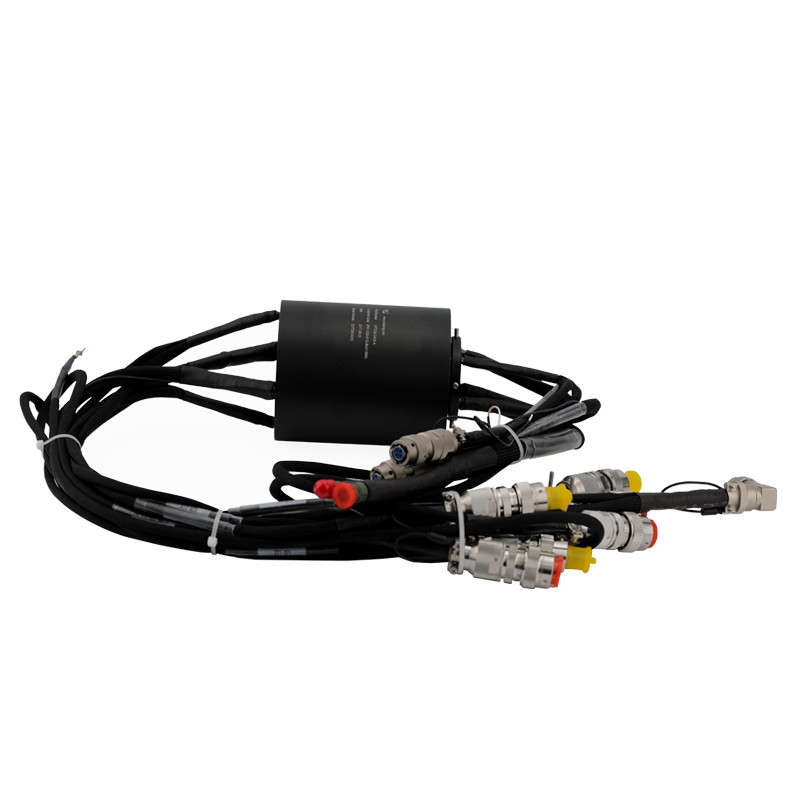

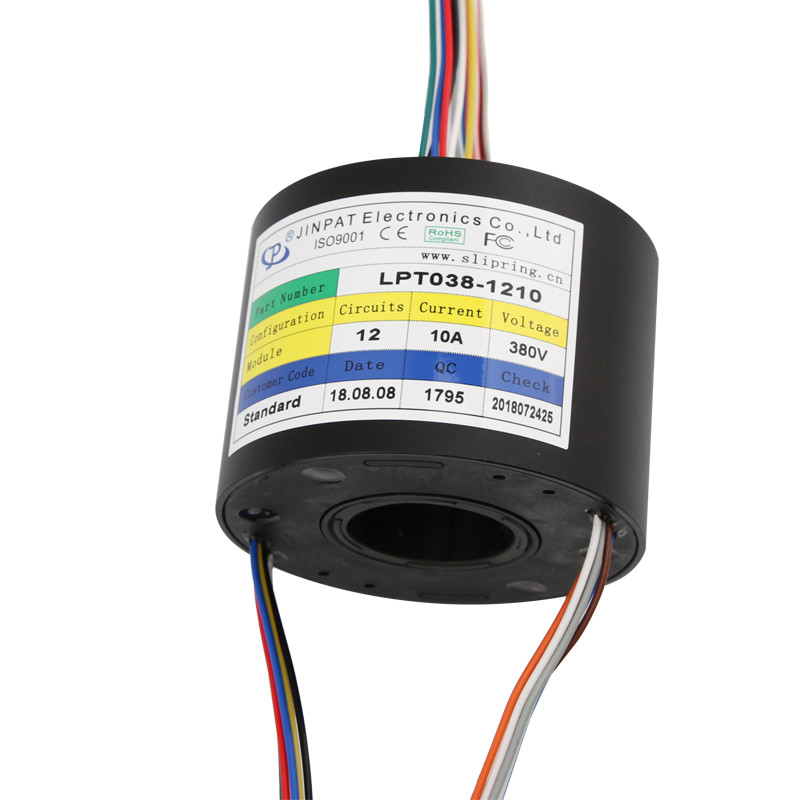

Compact Through Bore Slip Ring 38mm

  • Compact Through Bore Slip Ring 38mm
  • Compact Through Bore Slip Ring 38mm
Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPT038-02E3
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 500 pieces /Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Operating Speed 0-500rpm Working Humidity 60%RH
Voltage Rating 380VAC/DC Current Rating For Various Signals
Contact Material Precious Metal Protection IP54
Highlight

slip ring units

,

electrical slip ring
Product Description

 Compact Through Bore Slip Ring Quick Details

The LPT038-02E3 signal module slip ring provides an economical, readily available solution when a compact through-bore configuration is required. Signal module design can reduce the length of the slip ring and save installation room.The  Ethernet through-bore slip ring is a rotating assembly used to transfer power, control circuits, or data (analog / digital) from stationary inlets to rotating outlets.

This design features long life, fiber brush contact technology for ultimate performance in many challenging applications. Fiber brushes do not require lubrication and produce virtually no wear debris, free of maintenance free, long lifetime.



Specification
Circuits 1-24 circuits
Operating Speed 0-500rpm
Working Temperature -20℃~ +60℃
Working Humidity 60%RH
Electrical:
Voltage Rating 380VAC/DC
Current Rating For various signals
Dielectric Strength ≥1000V@50Hz between each circuit
Insulation Resistance 50MΩ@ 100VDC
Electrical Noise ≤70mΩ (50 rpm)
Mechanical:
Contact Material Precious metal
Lead Wire Size AWG 28
Lead Wire Length Standard 300mm (11.811 inches)
Housing Material Aluminum alloy
Torque ≤9.25 g·m (for reference )
Protection IP54


The operating life of the unit depends upon temperature, rotation speed, and environment.
The operating life ≥50,000,000 runs ref.


Dimension
Compact Through Bore Slip Ring 38mm 0
Application Picture

Compact Through Bore Slip Ring 38mm 1
