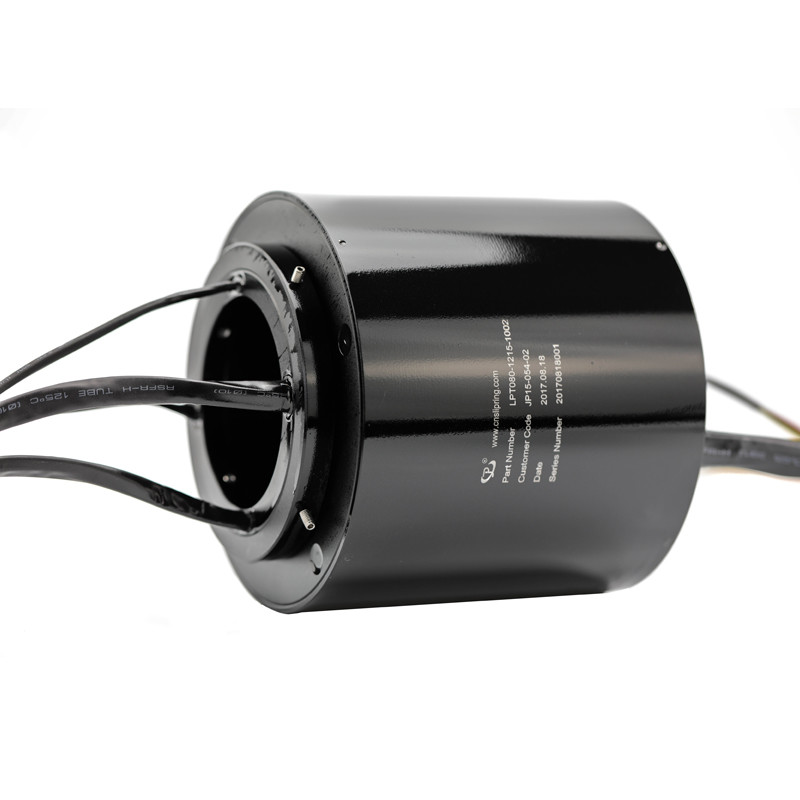

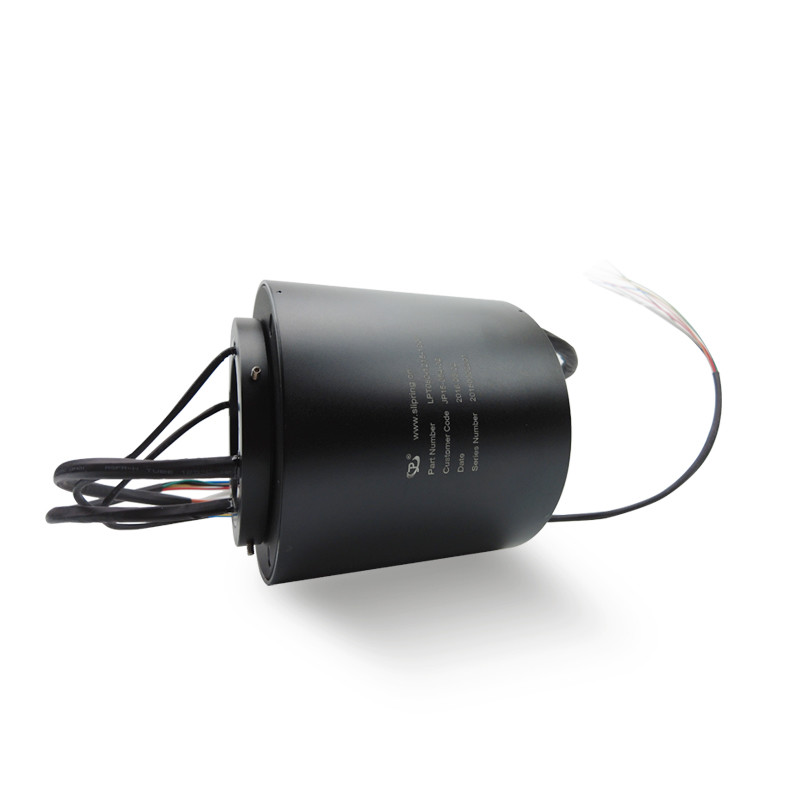

Bore Slip Ring 12 Circuits with 80mm

  • Bore Slip Ring 12 Circuits with 80mm
  • Bore Slip Ring 12 Circuits with 80mm
Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPT080-1215-1002
Minimum Order Quantity 1pcs
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 1000 units/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Current Rating 2 A/15 A Voltage Rating 420VAC/DC
Hole Size 80 Mm Operating Speed 1000rpm
Torque ≤9.25 G•m (for Reference )
Highlight

hollow shaft slip ring

,

through bore electrical slip ring
Product Description

1000rpm Slip Ring of 22 Circuits with 80mm Hole Diameter Transmitting 2A/10 A Per Wire with 420VAC


LPT080 through bore slip ring has 12 circuits routing 10A per wire, current and signals can be optical as your special needs.Continuous transmission of power and/or signal under 360°unrestrained rotation； Applies advanced fiber brush technology, free of maintenance or lubricating oil； Multi-contact points in each circuit, low contact pressure, low noise, low contact wear; extremely long life-time； Standardized & modularized design; customized solutions also available.


Advantage

Transfers control and data signals
Fiber brush technology provides maintenance-free operation (no lubrication required)
Modular design meets special requirements through off-the-shelf manufacturing techniques
Customized configurations for your application


Specification
Circuits2 22 circuits(routing current or signal)
Operating Speed 1000rpm
Working Temperature -20℃~ +60℃
Working Humidity 60%RH or higher
Electrical:
Voltage Rating 420VAC/DC or higher
Current Rating 2 A/15 A
Dielectric Strength ≥1000V@50Hz, ≥300V@50Hz between each circuit
Insulation Resistance 500MΩ@ 500VDC, 100MΩ@ 300VDC
Electric Noise ≤70mΩ
Mechanical:
Working Speed 1000 rpm
Hole Diameter 80mm
Contact Material Precious metal
Lead Wire Length Standard 300mm (11.811inch)
Housing Material Aluminum alloy
Torque ≤9.25 g·m (for reference )
Protection IP54 or higher




































Application picture(Power Shovel )


Bore Slip Ring 12 Circuits with 80mm 0
