2 Circuits Pancake Slip Ring Transmitting 4A Current with 30mm Bore Dia

  • 2 Circuits Pancake Slip Ring Transmitting 4A Current with 30mm Bore Dia
  • 2 Circuits Pancake Slip Ring Transmitting 4A Current with 30mm Bore Dia
Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPK030-0204
Minimum Order Quantity 1pcs
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 500 pieces /week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Internal Dimension 30mm Number Of Circuits 2
Current Rating 4A Per Circuit Contact Material Gold To Gold
Rating Voltage 50VDC Working Humidity 60%RH
Working Tempreture -20℃--+70℃ Working Speed 0-48rpm
Housing Material Aluminum Alloy
Highlight

pan cake slip ring

,

high current slip ring
Product Description

2 Circuits Pancake Slip Ring Transmitting 4A Current with 30mm Bore Dia for Military Use



Description



A slip ring is a rotary coupling used to transfer electric current from a stationary unit to a rotating unit. This is accomplished by either:
Holding the center core stationary while the brushes and housing rotate around it.
Holding the brushes and housing stationary while the center core is allowed to rotate



Fine brass rings are used for signals and can be plated with silver, gold or rhodium where low contact resistance and low noise levels are required. The best results are obtained when these precious metal surfaces are used in conjunction with silver-graphite brushes. These units are suitable for slow speed only when fitted with brass rings.



Outline Drawing

2 Circuits Pancake Slip Ring Transmitting 4A Current with 30mm Bore Dia 0

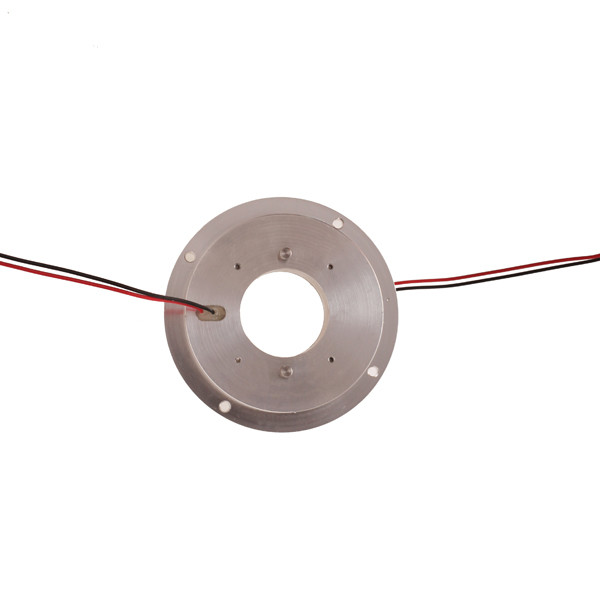

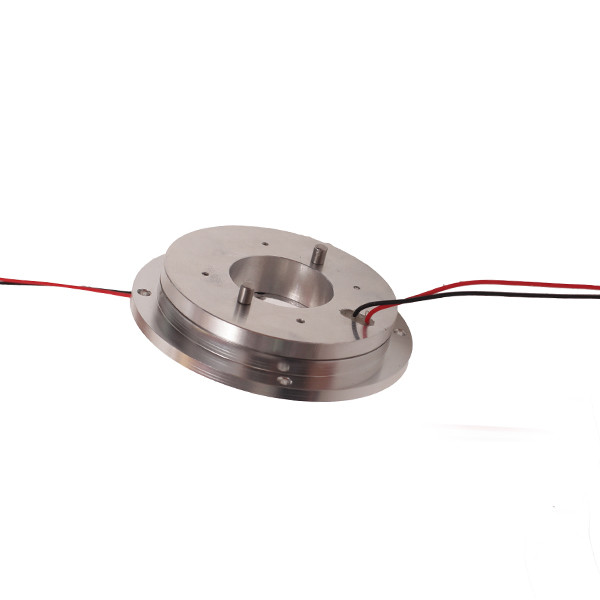

Product display

2 Circuits Pancake Slip Ring Transmitting 4A Current with 30mm Bore Dia 1
