60mm Hole Dia Slip Ring of 58 Circuits Precious Metal Contact
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Number Of Circuits | 58 | Operating Speed | 0-10rpm |
|---|---|---|---|
| Current Rating | 5A | Contact Material | Precious Metal |
| Housing Material | Aluminum Alloy | ||
| Highlight | rotating slip ring,hollow shaft slip ring |
||
Product Description

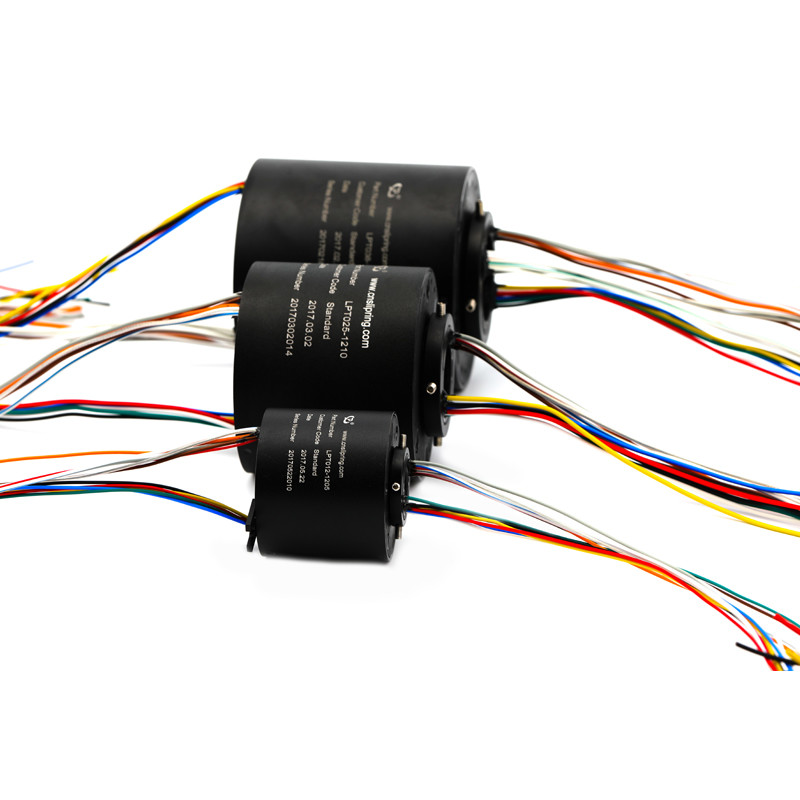

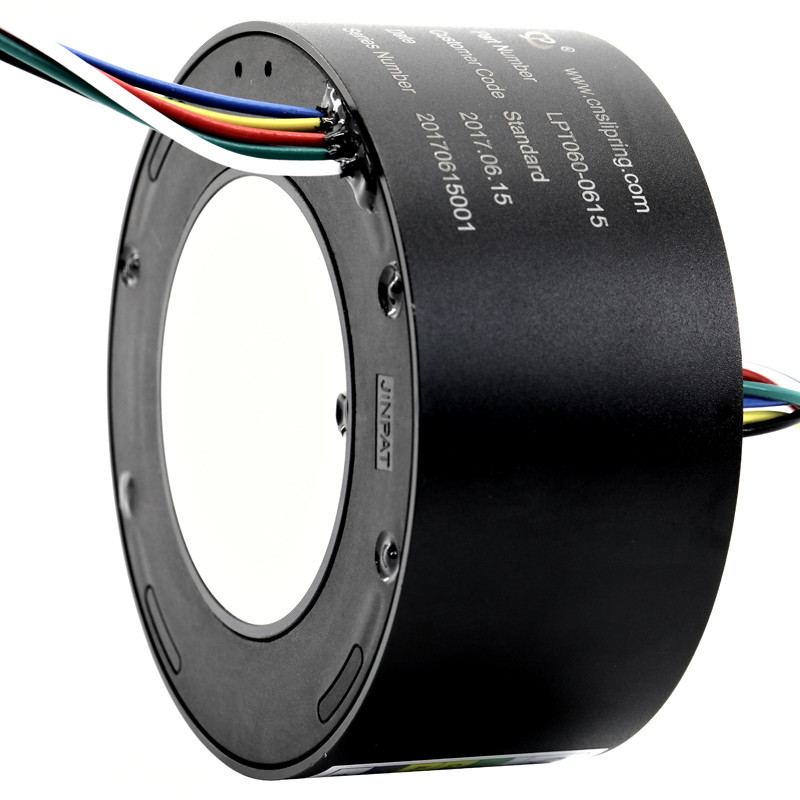

60mm Hole Dia Slip Ring of 58 Circuits with Precious Metal Contact Aluminum Alloy Housing
Description
Through bore slip rings (also known as "through hole slip ring") are slip ring with through bore, these series are designed for being installed with a flange on a sleeve bracket, also they totally meet with the continuous transmission of power and/or signal under 360-degree unrestrained rotations. This kind of slip rings uses a hollow shaft that applies the best-advanced fiber brush technology and precious metal multi-contacting, low noise, low contact pressure and free maintenance.
The 60mm unobstructed through-bore provides routing space for hydraulics, pneumatics or for a concentric shaft mount. The LPT060 uses our fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates. In addition, fiber brushes do not require lubrication and produce virtually no wear debris. The LPT060 features field serviceable brush blocks.
Outline drawing
| Specification | |
| Circuits | 58 circuits |
| Operating Speed | 0-10rpm |
| Working Temperature | -40℃~ +50℃ |
| Working Humidity | 60%RH or higher |
| Electrical: | |
| Voltage Rating | 220VAC/24VDC/36DC/50DC/28VDC/12VDC/5VDC |
| Current Rating | 5A |
| Dielectric Strength | ≥500V@50Hz between each circuit |
| Insulation Resistance | 500MΩ@ 500VDC |
| Electric Noise | ≤10mΩ |
| Mechanical: | |
| Contact Material | Precious metal |
| Lead Wire Size |
AWG17#/22# silver plated copper 50 Ω coaxial-cable |
| Lead Wire Length | Standard 300mm (11.811inch) |
| Housing Material | Aluminum alloy |
| Protection | IP 65 |
| Medium Frequency Parameters | |
| Signal Frequency | 70MHz |
| Insertion Loss | ≤0.5dB |
| Voltage Stationary Wave | ≤1.3 |
| Isolation between other channels | ≥50dB |
| Phase-WOW | ≤2° |
