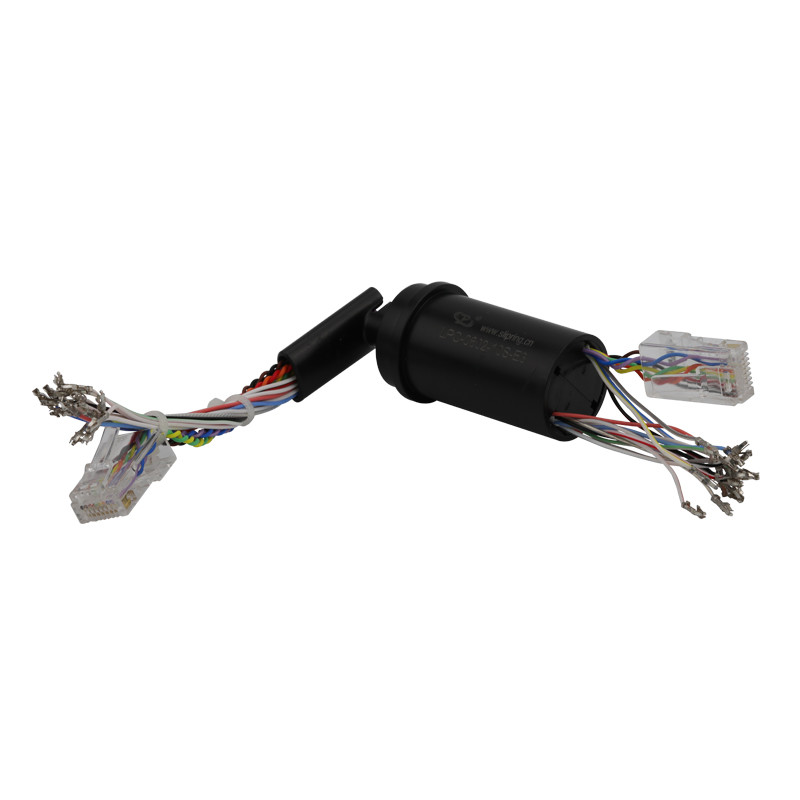

Gigabit Ethernet Capsule Electrical Slip Ring Transferring Current And Signal

  • Gigabit Ethernet Capsule Electrical Slip Ring Transferring Current And Signal
Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPC-0602-10S-E3
Minimum Order Quantity 1
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 50K units/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Number Of Circuits 24 Voltage 240VAC
Contact Material Gold To Gold Working Temperature -40℃~+85℃
Insulation 100MΩ@100VDC Working Speed 0~250 Rpm
Housing Engineering Plastic Name Electrical Slip Ring
Highlight

240VAC signal slip ring

,

240VAC electrical slip ring

,

240VAC electrical slip rings
Product Description

Gigabit Ethernet Capsule Electrical Slip Ring Transferring Current and Signal,Signal slipring produce expert​



Description



The LPC-0602-10S-E3 capsule slip ring is a unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.



It is designed especially for the equipment where transmission of electricity, signal including Gigabit Ethernet is required. It adapts a working temperature of -40°C~+85°C.



Specification



Circuits 8 circuits* Gigabit Ethernet, 6 circuits*2A, 10circuits*Signal
Working Voltage 240 VAC
Dielectric Strength Between circuits≥500VAC@50Hz
Insulation 100MΩ@100VDC
Electrical Noise ≤30mΩ
Working Speed 0~250 rpm
Contact Gold to Gold
Housing Engineering Plastic
Wire Size AWG26#, 28# Silver Plated
Temperature -40°C~+85°C
Humidity ≤60%RH
IP IP54
Life ≥5 million revolutions





Typical Application



  • Manufacturing and process control equipment
  • Indexing tables
  • Exhibit / display equipment
  • Aviation, military instrument, medical equipment

Outline Drawing



Gigabit Ethernet Capsule Electrical Slip Ring Transferring Current And Signal 0
