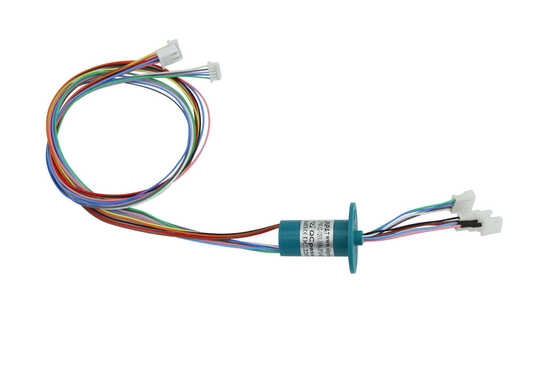

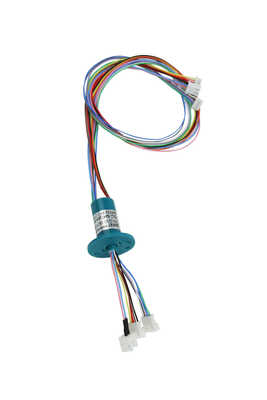

Capsule Slip Ring 12 Circuit LVDS signals

  • Capsule Slip Ring 12 Circuit LVDS signals
Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPM-12S
Minimum Order Quantity 1
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 500 pieces /Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Voltage Rating 7VAC/DC Dielectric Strength Beyond 500V@50Hz
Insulation 100mΩ@100VDC Electrical Noise 1mΩ Min
Advantage Compact Package. Application Robotics, Rotary Sensors
Current Rating 6 Circuits@ LVDS Signals; 4 Circuits@ 2A; 2 Circuits@ Other Signals
Highlight

compact slip ring

,

mini slip ring

,

7VAC mini slip ring
Product Description

JINPAT Compact Capsule 3D Scanner Silp Ring Transmit LVDS signals

Description



This unit can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.

Based on miniature slip ring, JINPAT R&D team developed a new signal slip ring: LPM-12S, which uses twisted pair to transmit a variety of signals. The miniature slip ring has a total of 12 circuits, of which 6 circuits are used to transmit LVDS signals, 4 circuits are used to 2A current, as well as 2 circuits for other signals.

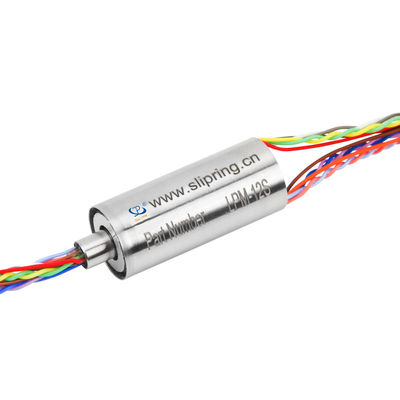

In order to achieve small size and lightweight, the miniature slip ring adopts special stainless alloy as the housing material. For its size, the slip ring has been designed with a diameter of 12.8mm and length of 30mm. Besides, due to gold to gold contact, the longer service lifetime is up to 100 million turns. And the slip ring has a low operating voltage of only 7VAC/DC.



Specifications
Operating Speed 0-300 rpm
Number of Circuits 12
Voltage 7VAC/DC
Current Rating 6 circuits@ LVDS signals; 4 circuits@ 2A; 2 circuits@ other signals
Temperature Range 0℃ to +65℃
Contact Material Gold to Gold
Lead Size 28# silver plated copper
Lead Length Standard 250 mm (9.843inch)
Dielectric Strength ≥500 VAC @50Hz, between each circuit
Insulation Resistance 100 MΩ @ 500 VDC
Electrical Noise 1mΩ Min



Application Picture

Capsule Slip Ring 12 Circuit LVDS signals 0
