JINPAT Ethernet Slip Ring 24VAC Precious Metal Contact

JINPAT Slip Ring for Speed Dome Camera Can Conduct 100M Ethernet

As a key rotating component in speed dome cameras, the slip ring plays an important role in ensuring the integrity and rapidity of data transmission during 360° rotation.

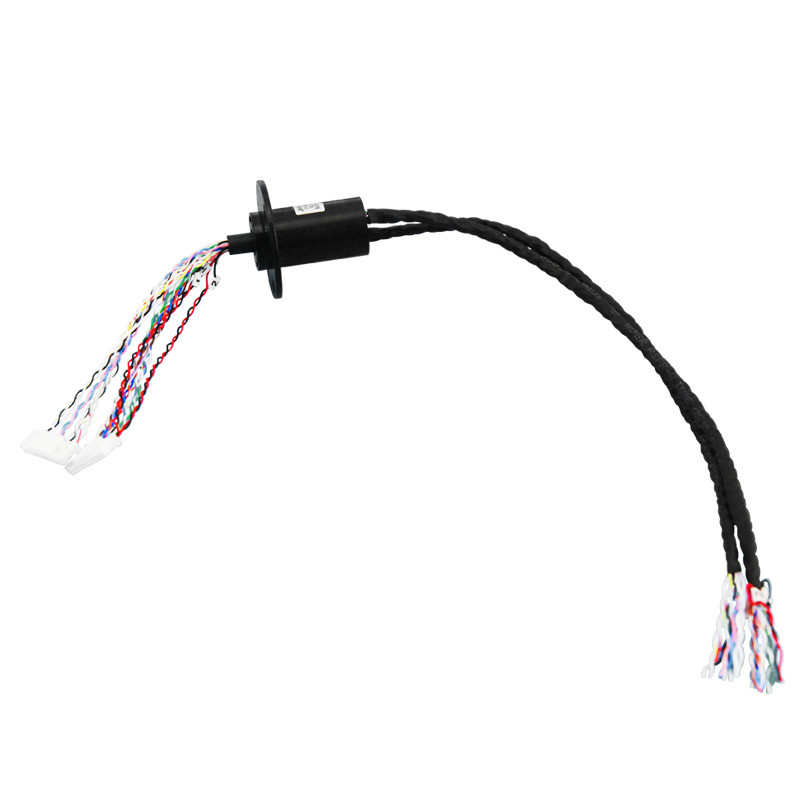

The speed dome camera slip ring: LPC-24A-0802-10S-E2 can conduct 100M Ethernet, 8 circuits*2A current, as well as 10 circuits*other signals. The internal space of speed dome camera is limited. According, it has strict requirements on the size of the slip ring. The speed dome slip ring is designed with a outer diameter of 22mm, and length of 42.3mm, which features not only compact but also stable. In order to guarantee accurate work at every moment, the speed dome camera has high requirements for slip ring’s performance stability. For improving stability, the slip ring adopts gold to gold contact materials that ensure its low electrical noise and longer service lifetime. Besides, it has successfully passed a series of rigorous tests such as vibration, impact, dust.

Features

• Voltage Rating: 0-24VAC/DC
• Dielectric Strength: Beyond 200V@50Hz
• Insulation: 10mΩ@100VDC
• Electrical noise: within 35 mΩ
• Operating speed: 0-300rpm
• Contact: Precious metal
• Temperature: -20℃ to +60℃

Company Introduction

JINPAT has 20 years experience in SLIP RING manufacturing. Our factory covers an area of 7000 square meters with professional R&D team, advanced production equipment and more than 300 skillful employees. JINPAT slip ring is one of the best-known brands in the Europe and North America. Our manpower is so competent that we meet the demands having varied specifications with ensured durable and reliable quality.
