LPCC-01C Hign Frequency Slip Ring DC-12GHz Typical High Frequency Auxiliaries
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Interface Type | N-F/NM(75Ω) | Frequency Range | DC-12GHz |
|---|---|---|---|
| VSWR,Max | 1.3 | Insertion Loss,Max | 1.0dB |
| Insulation Resistance | 5000MΩ | ||
| Highlight | 1.0dB High Frequency slip ring,500 cycles High Frequency slip ring,aerospace industries High Frequency Auxiliaries |
||
Product Description

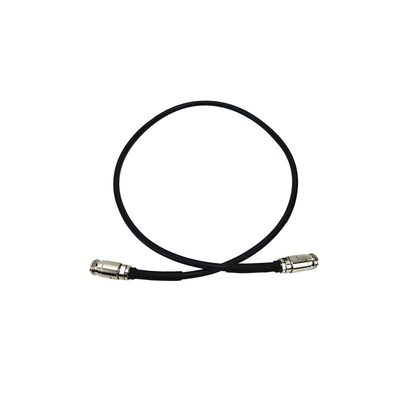

N-F-N-F(75Ω)Typical High Frequency Auxiliaries
High Frequency Phase-stable Low Loss Coaxial Cable Series,High Frequency Cable Auxiliaries and High Frequency Test Cable Auxiliaries are broadly applied in aerospace industry,Electronic countermeasures system(ECM), high frequency anechoic system connection and 5G mobile communication, etc.
| Product specification | |||
| Interface Type | N-F/NM(75Ω) | Body Materials | BRASS |
| Frequency range | DC-12GHz | Insulator Material | PTFE |
| VSWR,Max | 1.3 | Durability | ＞500cycles |
| Insertion loss,Max | 1.0dB | Operation Temperature | -30~+75°C |
| Voltage rating | 250V(rms) | Storage Temperature | -30~+75°C |
|
Dielectric withstanding voltage |
1000V | Humidity(Operation) | 95% |
| Insulation resistance | 5000MΩ | Humidity(Storage) | 95% |
