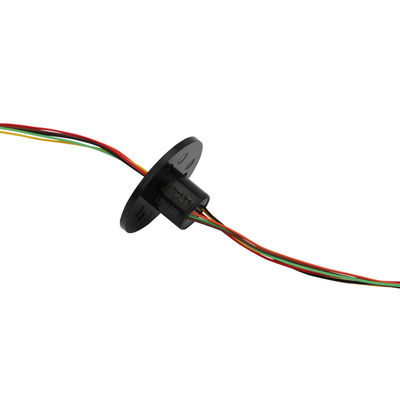

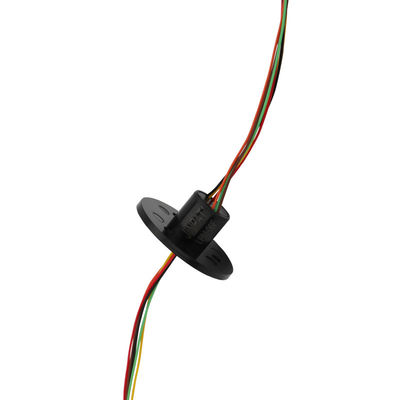

Capsule Slip Ring 240V AC/ DC LPM-06F

  • Capsule Slip Ring 240V AC/ DC LPM-06F
  • Capsule Slip Ring 240V AC/ DC LPM-06F
Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPM-06F
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 50K units/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Number Of Circuits 6 Voltage 240 VAC/DC
Contact Material Gold To Gold Other Application Indexing Tables
One Application Welding Machine Slip Rings Two Application Robotics Slip Rings
Lead Length Standard 250 Mm (9.843inch)
Highlight

mini slip ring

,

small slip ring
Product Description

Capsule Slip Ring 240V AC/ DC with Gold to Gold Contact Suitable for Shadowless Lamp of Medical Industry



Description



LPM-06F miniature slip ring is a standard, off-the-shelf unit that  uses gold contact at the rotary interface. Color-coded lead wires are used on the both stator and rotor for simplifying elecrical connections. It allows tremendous flexibility in dealing with system size restrictions. The contact pairing material and its shape makes the signal transmission reliable and continuative





Specifications
Operating Speed 0-300 rpm
Number of Circuits 6
Voltage 240 VAC/DC
Current Rating 1 amps per circuit
Temperature Range -20℃ to +60℃
Contact Material Gold to Gold
Lead Size 30# silver plated copper
Lead Length Standard 250 mm (9.843inch)
Dielectric Strength ≥500 VAC @50Hz, between each circuit
Insulation Resistance 1000 MΩ @ 500 VDC
Electrical Noise 1mΩMin



Capsule Length =L
# of Circuits L (mm) Part No
6 18.2 LPM-06F




Outline Drawing



Capsule Slip Ring 240V AC/ DC LPM-06F 0

Product Display

Capsule Slip Ring 240V AC/ DC LPM-06F 1

Application picture



Capsule Slip Ring 240V AC/ DC LPM-06F 2
