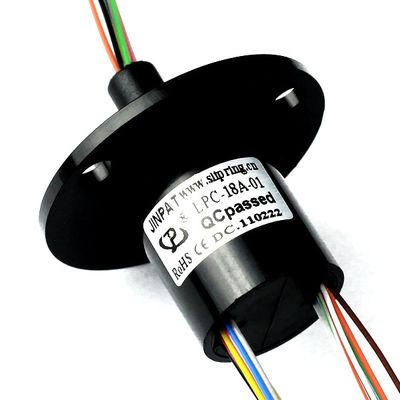

High Speed Slip Ring 18 Circuits 2A LPC-18A
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Number Of Circuits | 18 | Contact Material | Gold To Gold |
|---|---|---|---|
| Capsule Length | 35.03 Mm | Temperature Range | -20℃ To +60℃ |
| Speed | 300 Rpm Continuous | Insulation Resistance | 100 MΩ @ 500 VDC |
| Electrical Noise | 1mΩ Min | ||
| Highlight | compact slip ring,mini slip ring,18 Circuits High Speed Slip Ring |
||
Product Description
18 Circuits 2A High-Speed Slip Ring with Flange for Search Light with Low Electrical Noise
Description
This capsule slip ring maintains the electrical connection between a stationary part (stator) and a rotating part (rotor), allowing for continuous current where a simple cable connection can not serve such purpose. It is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint.
LPC-18A provides smooth running, low torque and low electrical noise. Color-coded lead wires are used on both the stator and rotor. These miniature package units have been developed to provide an economical and compact solution for power and signal transfer between static and rotational components.
Quick detail
| Specifications | |
| Operating Speed | 0-300 rpm |
| Number of Circuits | 18 |
| Voltage | 240 VAC/DC |
| Current Rating | 2 amps per circuit |
| Temperature Range | -20℃ to +60℃ |
| Contact Material | Gold to Gold |
| Lead Size | 28# silver plated copper |
| Lead Length | Standard 250 mm (9.843inch) |
| Dielectric Strength | ≥500 VAC @50Hz, between each circuit |
| Insulation Resistance | 100 MΩ @ 500 VDC |
| Electrical Noise | 1mΩ Min |
Outside Drawing
Application Picture
