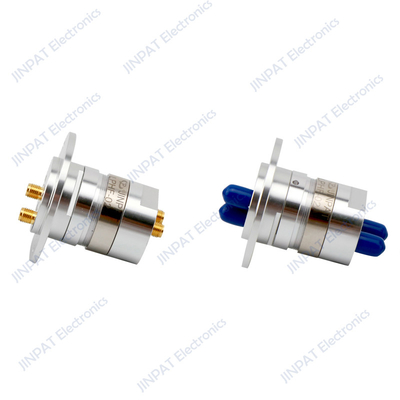

RF Coaxial Rotary Joint Single and Dual Channel Slip Rings IP60 in Compact Signal Slip Rings

  • RF Coaxial Rotary Joint Single and Dual Channel Slip Rings IP60 in Compact Signal Slip Rings
Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS

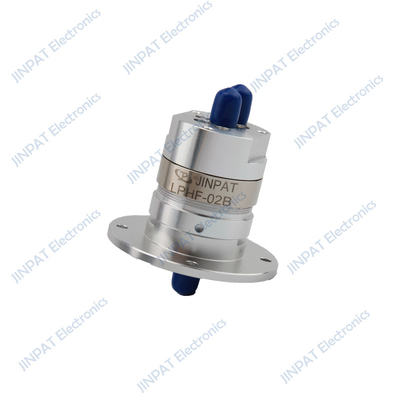

Model Number LPHF-02B
Minimum Order Quantity 1
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 500 pieces /Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rotating Speed, Max. 60rpm IP Protection Level IP60
Life Time, Min. 5 Million Revolutions Isolation，min. 50dB
Humidity (Operation ) 95% Storage Temperature -55～+85℃
Highlight

RF Coaxial Rotary Joint Slip Rings

,

Compact Signal Slip Rings IP60

,

Single and Dual Channel Slip Rings
Product Description

4.5GHz RF Coaxial Rotary Joint Single and Dual Channel Slip Rings IP60 in Compact Signal Slip Rings



Description



RF Coaxial Connector refers to a device installed on the cable or instrument as transmitting or breaking the line of electrical connections. Also, it belongs to Mechanical & Electrical Integration product.



Coaxial connector refers to connecting two used by the end of shaft parts, to ensure the centerline of two axes on the same axis.It has many different advantages compared to traditional slip ring such as Low torque minimizes system torque budget, compact design to fit in the most demanding space, high bandwidth transfer capability and low electrical noise.It also provides quick shipment per your urgent requirement, still operating smoothly and reliably.

Commonly used to connect to the driving shaft and driven shaft, transfer the rotary motion of the drive shaft to the driven shaft.


Specifications:
Insertion Loss, Max.
0.4dB@DC-4GHz
0.9dB@4-18GHz
Rotating Speed, Max.
60rpm
Insertion Loss WOW
0.05dB
Life Time, Min
5 million Revolutions
Peak Power, Max.
1000W
Operation Temperature
-45～+80℃
Weight,approx
0.13Kg
Storage Temperature
-55～+85℃
Starting Torque
0.05Nm@ room  temperature
Humidity  (Operation )
95%
Isolation,min.
50dB
Body Material
Aluminum alloy





RF Coaxial Rotary Joint Single and Dual Channel Slip Rings IP60 in Compact Signal Slip Rings 0
