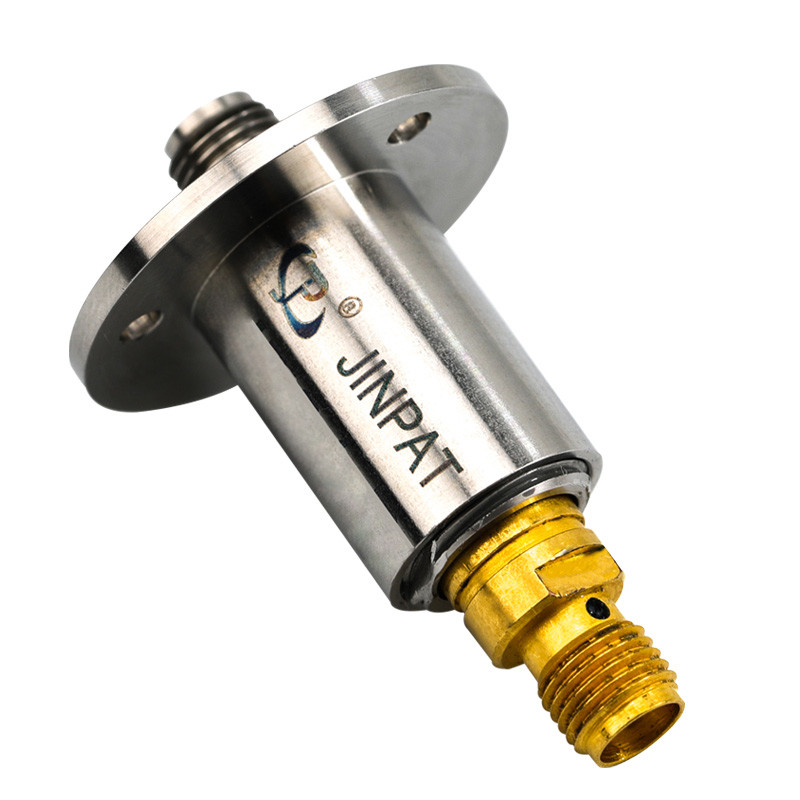

Single Channel Slip Ring/ Rotary Joint DC to 18 GHz

  • Single Channel Slip Ring/ Rotary Joint DC to 18 GHz
  • Single Channel Slip Ring/ Rotary Joint DC to 18 GHz
Place of Origin China
Brand Name JINPAT
Certification ISO9001.ISO14000.CE.UL.FCC.RoHS
Model Number LPHF-01B
Minimum Order Quantity 1
Price Negotiable
Packaging Details Standard/On Request
Delivery Time 2 weeks ARO
Payment Terms TT/CC/Paypal
Supply Ability 500 pieces /Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Frequency Range DC To 18 GHz Peak Power, Max 1500 W @ 1 GHz
Phase WOW (degrees Max) 1° Insertion Loss ,WOW 0.04 DB
IP Protection Level IP 60 Per EN 60529 Case Material Stainless Steel
Material Contact Beryllium Copper Application Vehicle Turrets
Highlight

slip ring rotary joint

,

coax rotary joint

,

Single Channel Slip Ring
Product Description

Single Channel Slip Ring/ Rotary Joint  Lightweight with Beryllium Copper Contact



Description

RF Coaxial Connector refers to a device installed on the cable or instrument as transmitting or breaking the line of electrical connections. Also, it belongs to Mechanical & Electrical Integration product.

It provides an economical, readily available solution when a compact through-bore configuration is required.

Compact slip rings are ideal for video and digital signals. Typical use applications are video systems (CCTV), robotics, cable reels, medical equipment and packaging machines.



Radio Frequency Specifications
Interface Type SMA Female (50 ohms)
Style I type
Frequency Range DC to 18 GHz
Peak Power, Max 1500 W @ 1 GHz
Average Power ,Max

200 W @ 1 GHz

70 W @ 12 GHz

50 W @ 18 GHz
VSWR , Max.

1.20 @ 0 to 6 GHz

1.25 @ 6 to 12 GHz

1.30 @ 12 to 18 GHz
VSWR WOW 0.03
Insertion Loss , Max

0.25 dB @ 0 to 6 GHz

0.30 dB @ 6 to 12 GHz

0.40 dB @ 12 to 18 GHz
Insertion Loss ,WOW 0.04 dB
Phase WOW (degrees max) 1°
General Mechanical and Environment data
Rotating Speed , Max 100 rpm Life , min. 5 x 106 revolutions
Starting Torque 1 Ncm max Continuous Rotational Torque 1 Ncm max
Axial load on interface, max ±5 N Radial load on interface ,max ±5 N
Case material Stainless steel Material contact Beryllium Copper
Weight , approx 11.5 g Marking Adhesive Label
Temperature (Ambient Range) -40 to +70℃ (Operation)

Humidity

(Non-condensing) ,max.

 85% (Operation)
-50 to +70℃ (Storage) 95% (Storage)
IP Protection level IP 60 per EN 60529



Outline Drawing
Single Channel Slip Ring/ Rotary Joint DC to 18 GHz 0
Application Picture

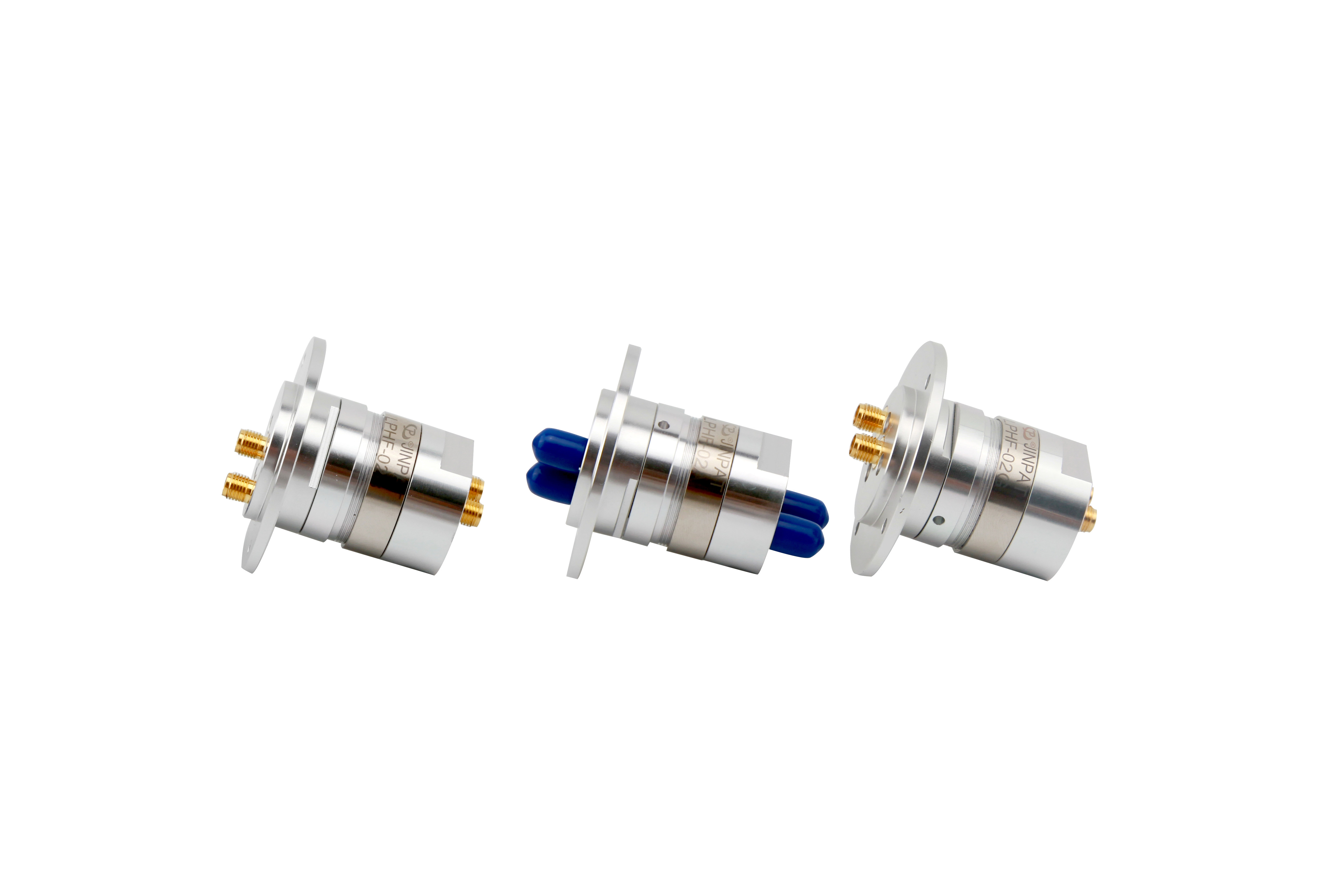

Single Channel Slip Ring/ Rotary Joint DC to 18 GHz 1
